Project oriented workflows

Shannon Pileggi

Getting started

Licensing

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License (CC BY-SA4.0).

Checklist

R installed? Pretty recent?

     Recommended R ≥ 4.3.0

RStudio installed?

     I’m on 2023.06.1 Build 524

Packages?

install.packages(c("tidyverse", "rmarkdown", "usethis", "fs", "here"))

Resources

Book: https://rstats.wtf

What Did They Forget
to Teach You?

Learning objectives

1. Establish the concept of the project as the basic organizational unit of work.

2. Apply best practices in and leverage benefits of working in RStudio projects, including

• Creating robust file paths that travel well in time and space.

• Constructing human and machine readable file names that sort nicely.

• Differentiating workflow elements, analysis inputs, and analysis outputs in project structure to create navigable programming interfaces.

• Restarting R frequently, with a blank slate.

Be organized

Be organized as you go,
not “tomorrow”

Don’t fret over past mistakes.

Raise the bar for new work.

Be organized

self-explaining >>> wordy, needy explainers

Be organized

>>>

  file salad
  + an out of date README

Good enough practices in scientific computing

PLOS Computational Biology

Wilson, Bryan, Cranston, Kitzes, Nederbragt, Teal (2017)

https://doi.org/10.1371/journal.pcbi.1005510

http://bit.ly/good-enuff

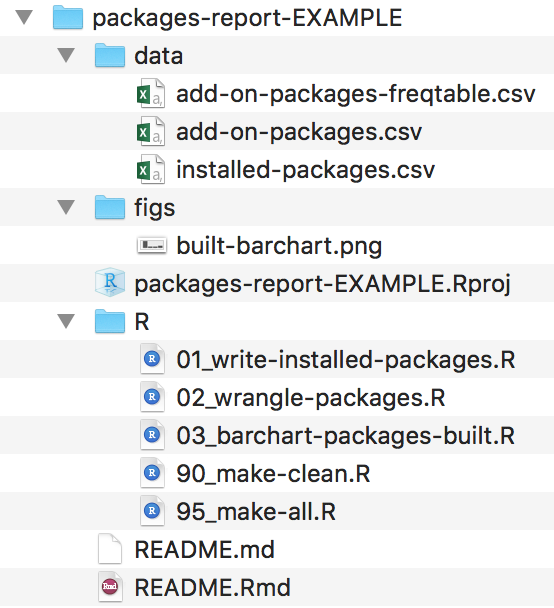

Practical Example

Your R installation

R packages

• the natural unit for distributing R code

base R

• 14 base + 15 recommended packages

• ships with all binary distributions of R

For example, have you used lattice recently? 🤷

• it came with your R installation, can use out of the box

• library(lattice)

Additional packages

CRAN, ~20k packages

# install from CRAN
install.packages("devtools")
# attach
library(devtools)

GitHub, ??? packages

# install via devtools
devtools::install_github("rstats-wtf/wtfdbg")
# attach
library(wtfdbg)

Where do packages live locally?

By default, in the default library

.Library

All libraries for the current session

.libPaths()

All installed packages

installed.packages()

Syntax aside: pipes

• 2014+ magrittr pipe %>%

• 2021+ (R \(\geq\) 4.1.0) native R pipe |>

2022 Isabella Velásquez Understanding the native R pipe |> https://ivelasq.rbind.io/blog/understanding-the-r-pipe/

whatever(arg1, arg2, arg3, ...)
arg1 |>
  whatever(arg2, arg3)

mean(0:10)
0:10 |>
  mean()

Syntax aside: namespacing

dplyr::select()

• tells R explicitly to use the function select from the package dplyr

• can help to avoid name conflicts (e.g., MASS::select())

• does not require library(dplyr)

library(dplyr)
select(mtcars, mpg, cyl)
mtcars |>
  select(mpg, cyl)

# library(dplyr) not needed
dplyr::select(mtcars, mpg, cyl)
mtcars |>
  dplyr::select(mpg, cyl)

🧐 Explore your R installation

install.packages("usethis")
library(usethis)
# saves project on desktop by default for most users
use_course("rstats-wtf/wtf-explore-libraries")
# use_course("rstats-wtf/wtf-explore-libraries", destdir = "my/new/location")
# can alternatively download from
# https://github.com/rstats-wtf/wtf-explore-libraries

Read the README.md to get started.

• 01_explore-libraries_spartan.R
  (directions to explore without suggested code)

• 01_explore-libraries_comfy.R
  (directions to explore with suggested code)

• 01_explore-libraries_solution.R
  (directions to explore with code solutions)

10:00

Project-oriented workflows

Adopt a project-oriented workflow

Why

• work on more than 1 thing at a time

• collaborate, communicate, distribute

• start and stop

How

• dedicated directory

• RStudio Project

• Git repo, probably syncing to a remote

If the top of your script is

setwd("C:\Users\jenny\path\that\only\I\have")
rm(list = ls())

Jenny will come into your your office and SET YOUR COMPUTER ON FIRE 🔥.

Project-oriented workflow designs this away. 🙌

Which persist after rm(list = ls())?

Option	Persists?
A. library(dplyr)
B. summary <- head
C. options(stringsAsFactors = FALSE)
D. Sys.setenv(LANGUAGE = “fr”)
E. x <- 1:5
F. attach(iris)

02:00

Which persist after rm(list = ls())?

Option	Persists?
A. library(dplyr)
B. summary <- head
C. options(stringsAsFactors = FALSE)
D. Sys.setenv(LANGUAGE = “fr”)
E. x <- 1:5
F. attach(iris)

What does it mean to be an RStudio Project?

RStudio leaves notes to itself in foo.Rproj

Open Project = dedicated instance of RStudio

• dedicated R process

• file browser pointed at Project directory

• working directory set to Project directory

Many projects open

Use a “blank slate”

usethis::use_blank_slate()

OR

Tools -> Global Options

Restart R often

Session -> Restart R

Windows

• Ctrl + Shift + F10

Mac

• Cmd + Shift + 0

• Cmd + Shift + F10

Project initiation: the local case

1. New folder + make it an RStudio Project

• usethis::create_project("~/i_am_new")

• File -> New Project -> New Directory -> New Project

2. Make existing folder into an RStudio Project

• usethis::create_project("~/i_exist")

• File -> New Project -> Existing Directory

Try option 2 now for wtf-explore-libraries.

02:00

Safe paths

On reproducibility of code

A large-scale study on research code quality and execution.
Trisovic, A., Lau, M.K., Pasquier, T. et al.
Sci Data 9, 60 (2022).

Do you know where
your files are?

Working directory is associated with a specific process or running application.

For a newly launched process or application instance, the working directory (probably? usually?) defaults to user’s home directory. Or perhaps the application consults a config file to set the working directory at launch time. This is sort of how I would describe launching an RStudio Project.

“Working directory” as a concept is not comparable to “home directory”. “Home directory” is a static, persistent thing.

Practice “safe paths”

relative to a stable base

use file system functions

    not paste(), strsplit(), etc.

Packages with file system functions

install.packages("fs")

fs = file path handling

install.packages("here")

here = project-relative paths

Examples of a stable base

Project directory

here::here("data", "raw-data.csv")
here::here("data/raw-data.csv")

Automatically complete paths with Tab.

User’s home directory

file.path("~", ...)
fs::path_home(...)

Official location for installed software

library(thingy)
system.file(..., package = "thingy")

See example in gapminder readme.

see where tilde goes with fs::path_expand(file.path(“~”))

Absolute paths

I have nothing against absolute paths.

Some of my best friends are absolute paths!

But don’t hard-wire them into your scripts.

Instead, form at runtime relative to a stable base

> (BAD <- "/Users/shannon/tmp/test.csv")
[1] "/Users/shannon/tmp/test.csv"

> (GOOD <- fs::path_home("tmp/test.csv")
[1] "/Users/shannon/tmp/test.csv"

Practice safe paths

• Use the here package to build paths inside a project.

• Leave working directory at top-level at all times, during development.

• Absolute paths are formed at runtime.

here example

ggsave(here::here("figs", "built-barchart.png"))

• Works on my machine, works on yours!

• Works even if working directory is in a sub-folder.

• Works for RStudio Projects, Git repos, R packages, etc.

• Works with knitr / rmarkdown.

here::here()

The here package is designed to work inside a project, where that could mean:

• RStudio Project

• Git repo

• R package

• Folder with a file named .here

here::here() does not create directories; that’s your job.

Kinds of paths

Absolute path.

dat <- read.csv("C:/Users/pileggis/Documents/wtf-fix-paths/data/installed-packages.csv")

Relative path to working directory, established by the RStudio Project.

dat <- read.csv("data/installed-packages.csv")

Relative path within the RStudio Project directory.

dat <- read.csv(here::here("data/installed-packages.csv"))

Your turn

Practice calling here::here() in a project
to get a feel for it.

library(usethis)
# saves project on desktop by default for most users
use_course("rstats-wtf/wtf-fix-paths")
# use_course("rstats-wtf/wtf-fix-paths", destdir = "my/new/location")
# can alternatively download from
# https://github.com/rstats-wtf/wtf-fix-paths

Read the README.md to get started.

10:00

What if my data can’t live in my project directory?

1. Are you sure it can’t?

2. Review the Good Enough Practices paper for tips.

3. Create a symbolic link to access the data. (fs::link_create(), fs::link_path())

4. Put the data in an R package.

5. Use pins.

6. Explore other data warehousing options.

RStudio Community threads:

• Project-oriented workflow; setwd(), rm(list = ls()) and computer fires

• Best way to define paths for a file running on a cron?

Names matter

’Tis but thy name that is my enemy;
Thou art thyself, though not a Montague.
What’s Montague? It is nor hand, nor foot,
Nor arm, nor face, nor any other part
Belonging to a man. O, be some other name!
What’s in a name? That which we call a rose
By any other name would smell as sweet;
So Romeo would, were he not Romeo call’d,
Retain that dear perfection which he owes
Without that title. Romeo, doff thy name;
And for thy name, which is no part of thee,
Take all myself.

This

is

not

true

for

file

names.

Names matter

machine readable

human readable

sort nicely

What features differentiate 😔 vs 😍?

😔

😍

myabstract.docx

Joe’s Filenames Use Spaces and Punctuation.xlsx

figure 1.png

homework1.R

JW7d^(2sl@deletethisandyourcareerisoverWx2*.txt

2018-01_bryan-abstract-rstudio-conf.docx

joes-filenames-are-getting-better.xlsx


bryan_hw01.R

1986-01-28_raw-data-from-challenger-o-rings.txt

01:00

Names machines like

1. don’t leave white space

2. use letters, numbers, hyphens and underscores… that’s it
   (characters like ^.*?+|$ can have a special meaning)

3. be consistent with case
   (some operating systems treat a and A the same, some differently).

4. use separator characters wisely

    use underscore _ to separate different chunks

    use hyphen - for words in the same chunk

This creates names that are regular expression and globbing friendly, and easy to compute on! 🎉

Names humans like

name contains info on content

name anticipates context

concept of a slug 🐌 from user-friendly URLs

• 1986-01-28_raw-data-from-challenger-o-rings.txt

• concise, meaningful description

• usually appended to the end

Note: A URL slug is the part of the URL after the last backslash - important for keyword SEO

Names that sort nicely

put something numeric in there

left pad with zeros for constant width, nice sorting, 01

use the ISO 8601 standard for dates, YYYY-MM-DD

order = chronological or … consider common sense

ISO 8601

YYYY-MM-DD

ISO 8601

https://www.iso.org/iso-8601-date-and-time-format.html

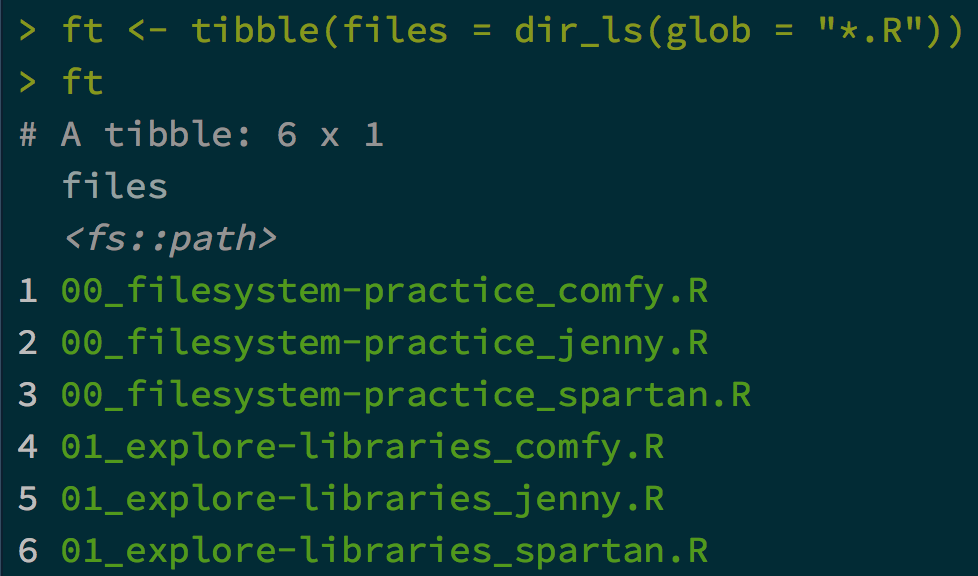

👍 file names

Anyone can guess at file’s purpose

👍 file names

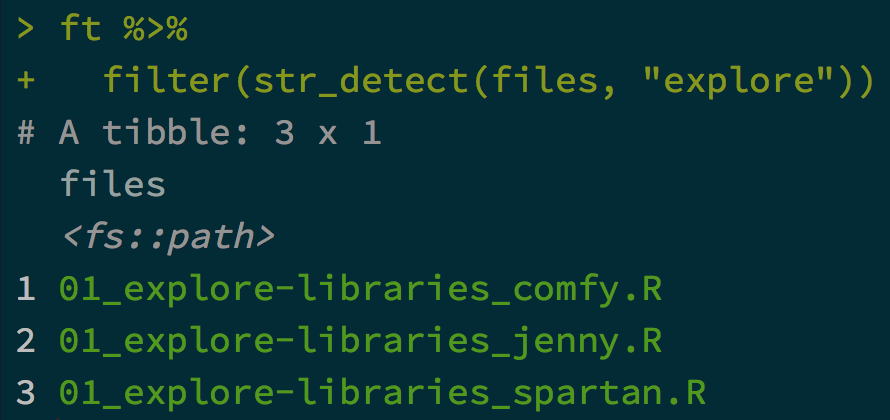

Easy to filter in R (or the shell or whatever)

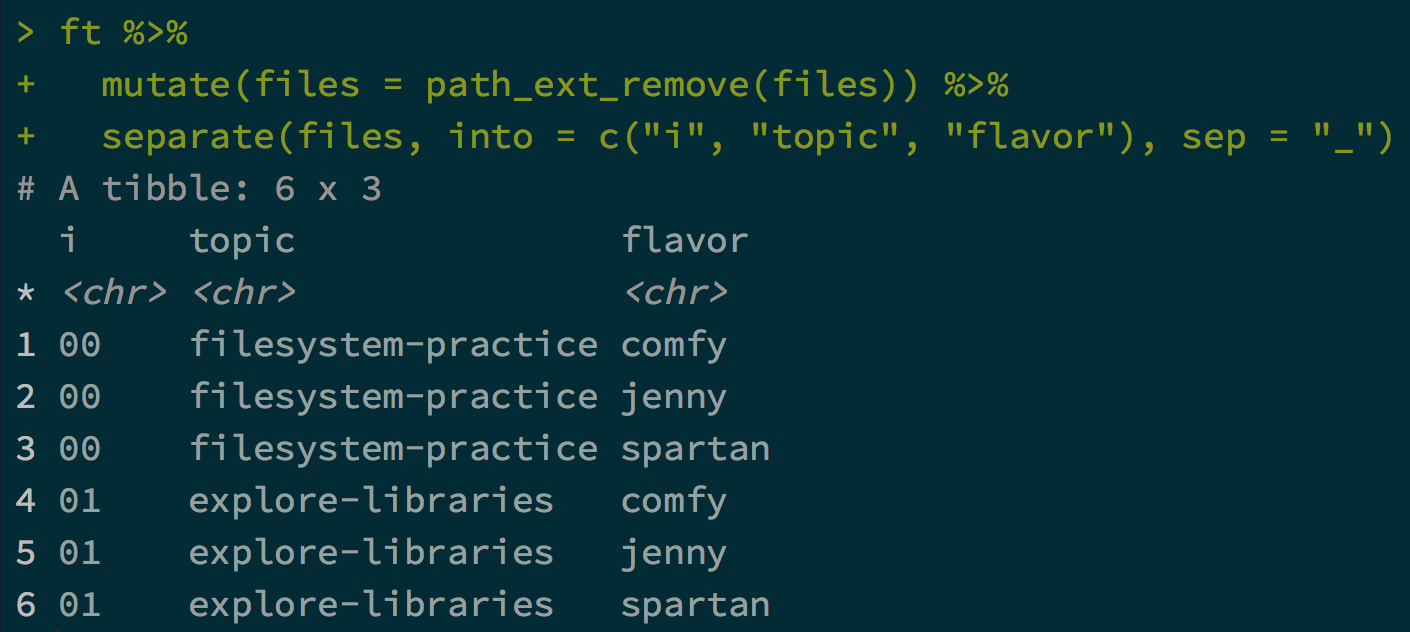

👍 file names

Intentional delimiters means meta-data is easily recovered.

_ delimits fields; - delimits words

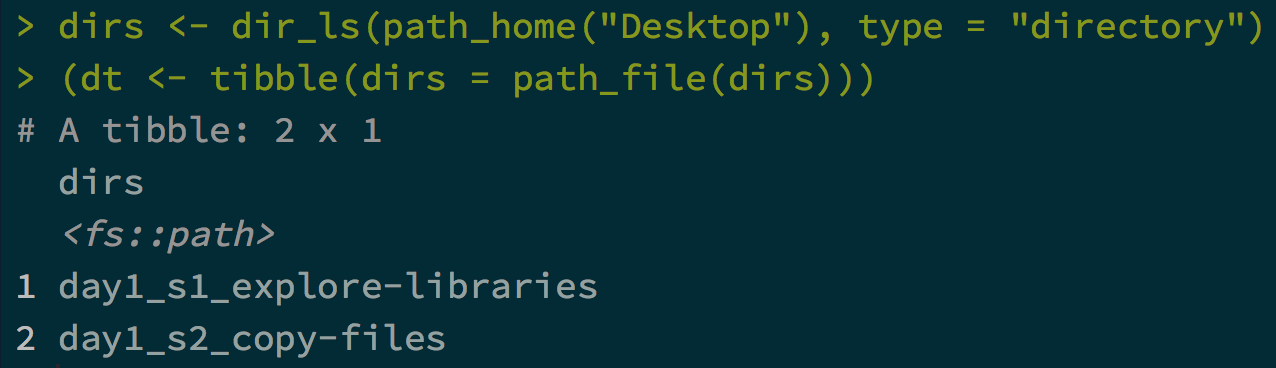

👍 file names

Sorts in the same order as you
experience in real life.

Names matter

machine readable, human readable, and sort nicely

easy to implement NOW

payoffs accumulate as your skills evolve and
projects get more complex

Project structure

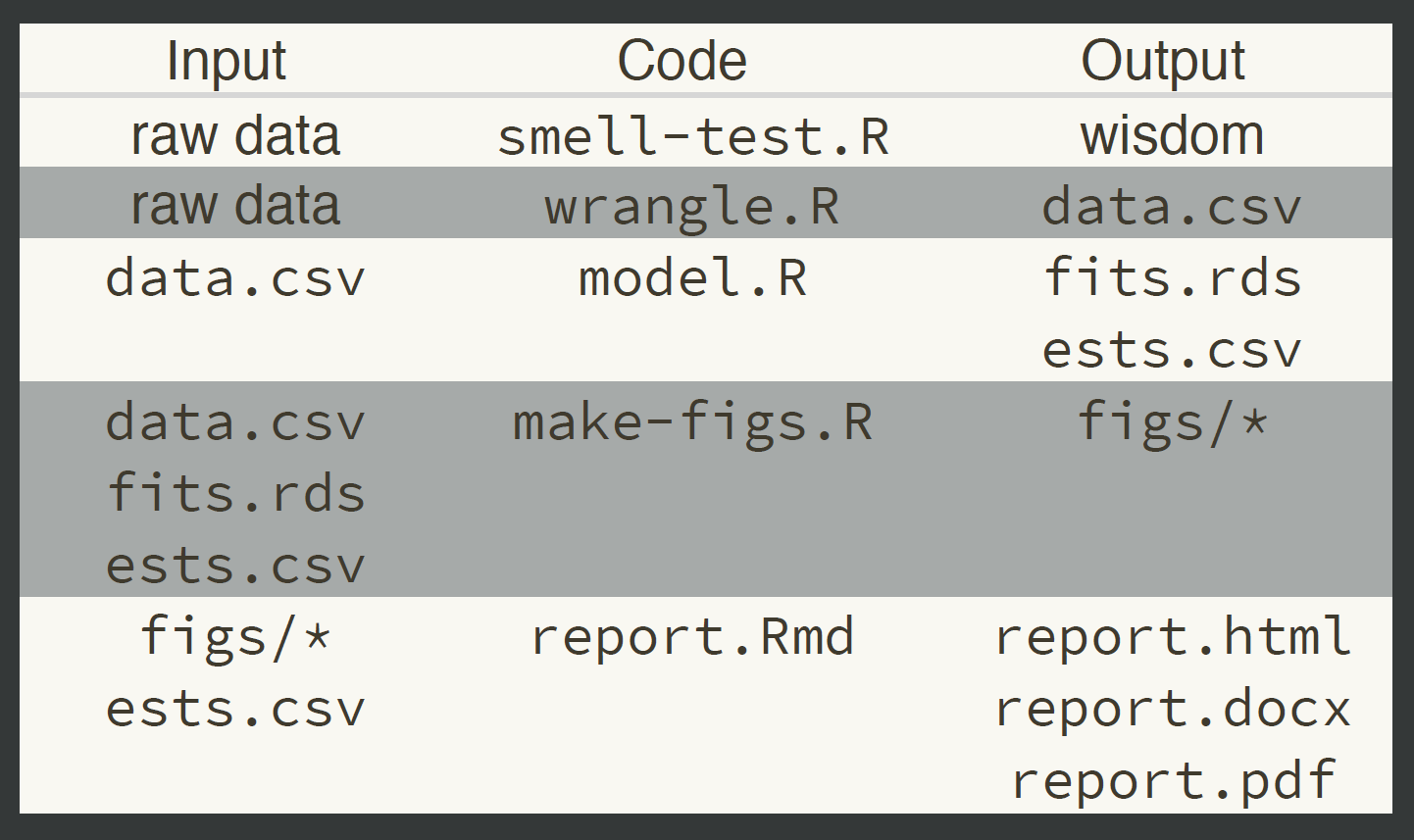

Break logic and output into pieces

Process

Project code

smell.test.R

wrangle.R

model.R

make-figs.R

report.Rmd

>>>

    everything.R

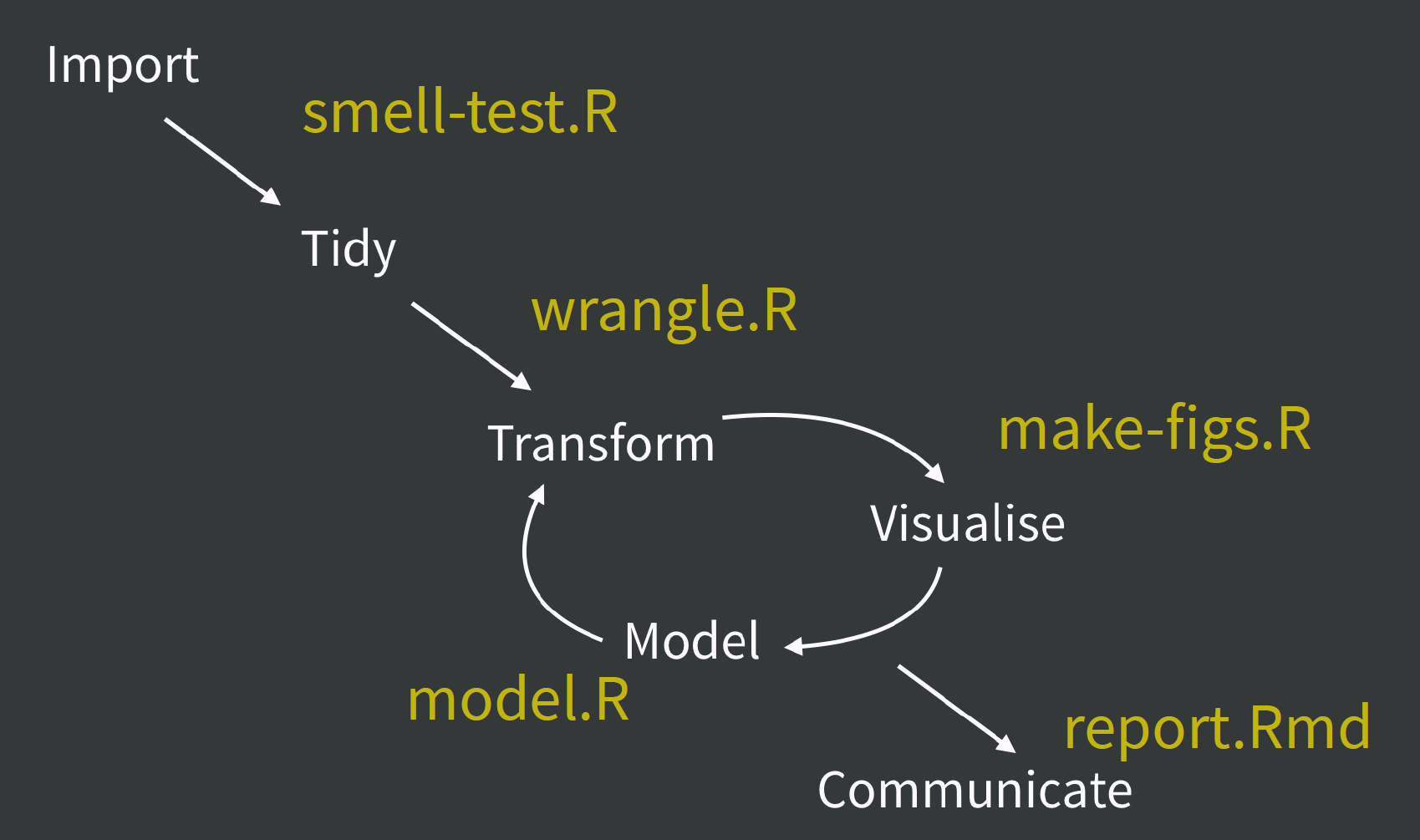

Process and code

Project artifacts

raw-data.xlsx

data.csv

fit.rds

ests.csv

>>>

.Rdata

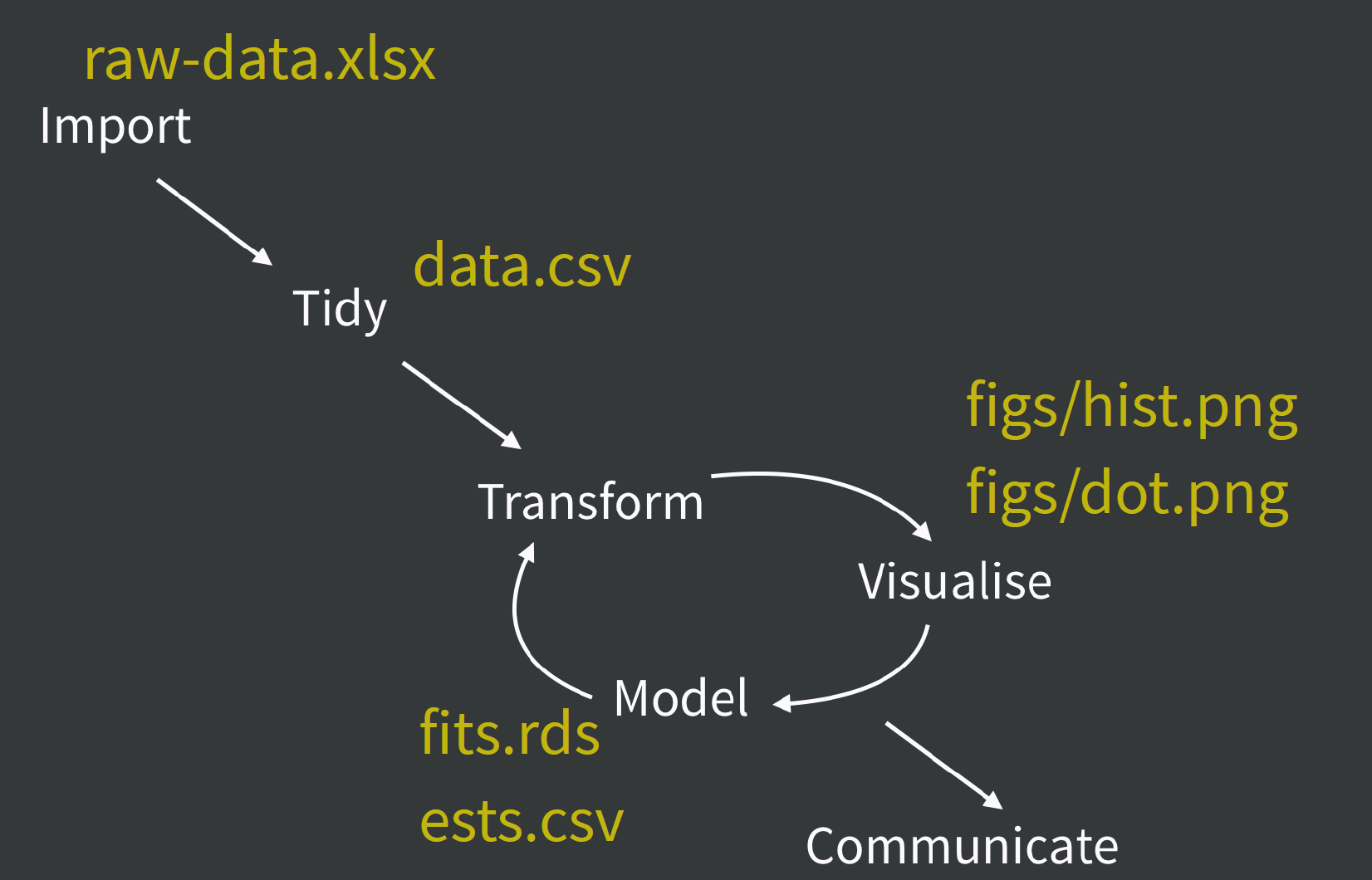

Process and artifacts

A humane API for analysis

Your turn

Create a report that adheres to project organization strategies.

library(usethis)
# saves project on desktop by default for most users
use_course("rstats-wtf/wtf-packages-report")
# use_course("rstats-wtf/wtf-packages-report", destdir = "my/new/location")
# can alternatively download from
# https://github.com/rstats-wtf/wtf-packages-report

Read the README.md to get started.

10:00
